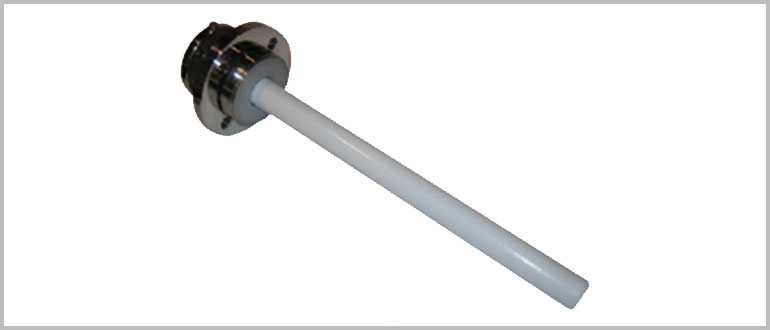

Lined Dip Pipe & Sparger

Dip pipes are used to deliver or withdraw liquids or gases to and from reactor vessels, columns, and storage tanks. These dip pipes can be supplied in curved units and in single & double-flanged units.

PTFE Lined Dip Pipe in the Range of 25 NB to 200 NB, The liner thickness of the product ranges from 3 mm to 7 mm. The maximum length is 3000 mm.

Technical Specifications

Flange	Carbon Steel ASTM A-105 as per 16/ASTM A B16.5 ASA # 150/SS
Pipe	Seamless Carbon Steel ASTM A-106,SS Sch40, 80 As per ASME B36.10
Lining	PTFE As per ASTM D1547 /PFA-TE-450 HP (DUPONT) As per ASTM D-3307
Teflon Ring	PTFE As per ASTM D-1457
Spray Nozzle	Virgin PTFE
